Active ventilation grille – 10″ 1U Rackmount
Active ventilation grille for 10″ racks at 1U height. For 2pcs 40x40x10 fans.
More detailed description see below
Active ventilation grille – 10″ 1U

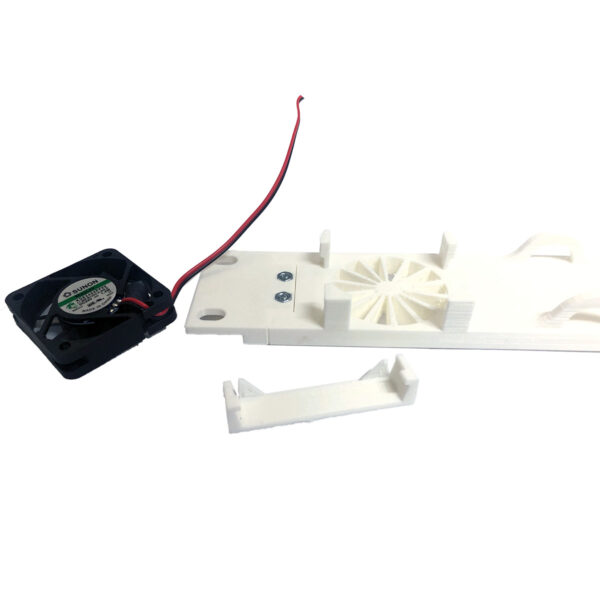

Scope of delivery:
- Base plate for mounting 2pcs 40x40x10 fans (recommendation: Sunon EE40101S2-1000U-999 12V)
- 2x Rackmount Adapter for mounting on the rack rail
- 2x mounting brackets for fixing the fans
Required mounting material: (not included in the scope of delivery – can be ordered separately)
- 4x M3x6
- 4x M3 nut
- 2x M6 rack rails screw
- 2x M6 rack rails nut
As power supply I recommend for example the: SLF SLT6-700ISC
The power supply unit can be mounted, for example, with cable ties on the back of the ventilation grille (use the two eyelets for cable ties).

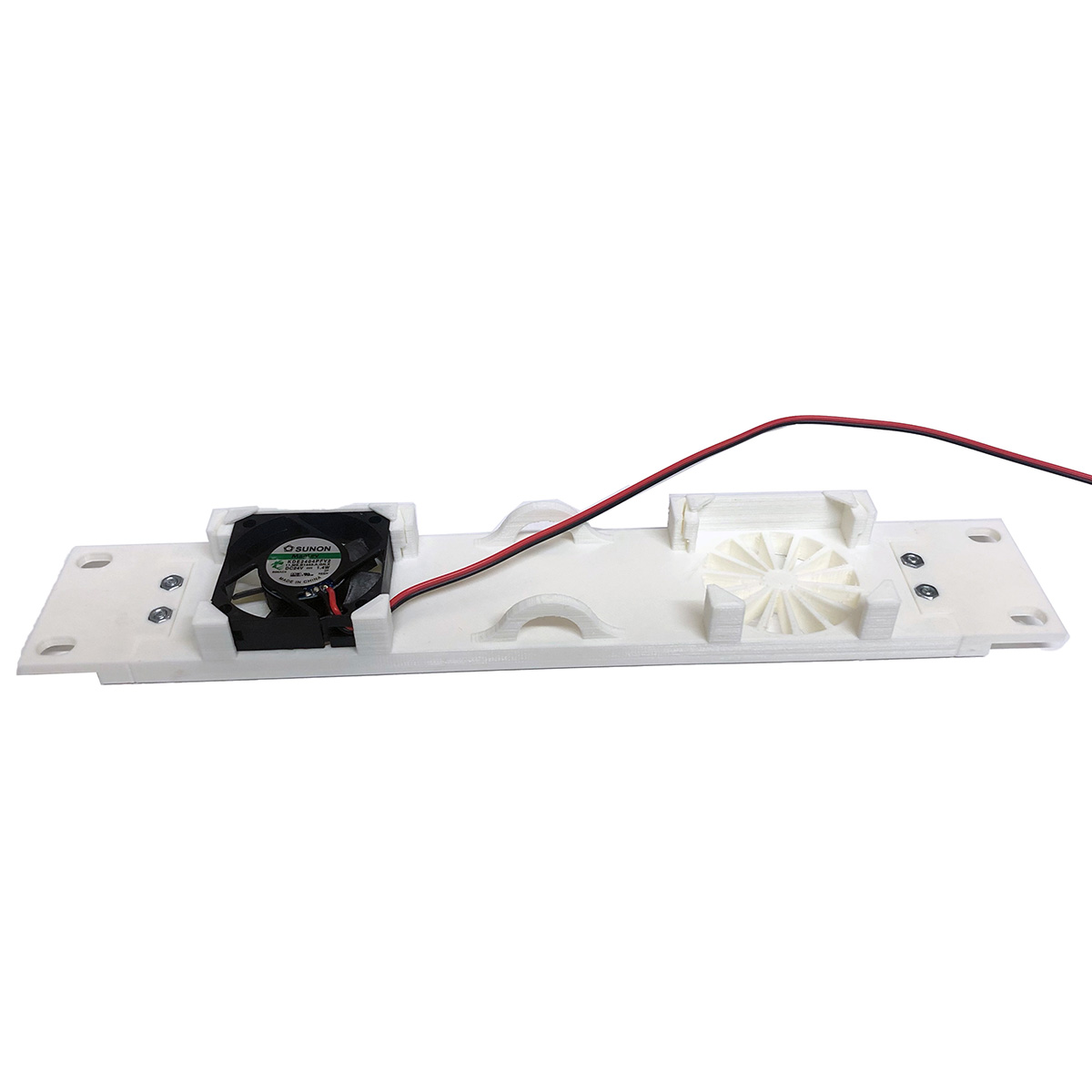

The delivery does not include the units shown. The illustration of the units is for illustration purposes only.
