3DW-Z1 variants
€2,38 – €4,76
Connector piece
Connector width: 40.00mm
for all design variants, the components shown for illustration purposes, such as RJ45 keystones, LEDs, pushbuttons, SD card extensions, etc., are not supplied. These can be added to the order if needed, if offered by me in the store.
3
People watching this product now!
The connector with width 40mm connects two Rapsberry Pi baseplates together. The connector ensures that the port on the side of the Raspberry Pi remains accessible.
Das Verbindungsstück ist in verschiedenen Varianten erhältlich.
vorbereitet für RJ45-Keystones*:
Variante-J*:
two slots each for
- SD-Karten-Erweiterungsmodule (25,2mm x 17,2mm x 33mm)
Variante-N*:
two slots each for
- SD-Karten-Erweiterungsmodule (25,2mm x 17,2mm x 33mm)
- Push-Buttons (7mm)
- LED’s (3mm)

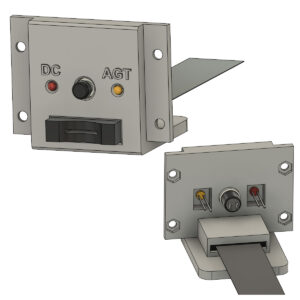

Variante-U6*:
- SD-Karten-Erweiterungsmodul (25,2mm x 17,2mm x 33mm)
- Push-Button (7mm)
- LED’s (3mm)
Without arrow to “indicate” the affiliation

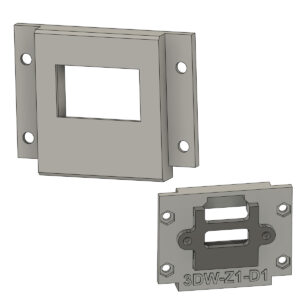

Variante-D1*:
- Zur Aufnahme eines 0,96″ OLED Displays von AZDelivery (0,96 Zoll OLED SSD1306 Display I2C 128 x 64 Pixel)
Das Display wird mit einem Haltebügel und 2x M3x6 Schrauben im Zwischenstück fixiert
Â
*with all design variants, the components shown for illustration purposes, such as RJ45 keystones, LEDs, pushbuttons, SD card extensions, etc., are not supplied. These can be added to the order if needed, if offered by me in the store.
| Ausführung | default, prepared for RJ45 keystones, SD card expansion + pushbutton + LED (for 2x Raspi's) – VAR N, SD card expansion (for 2x Raspi's) – VAR J, [U6] – SD card expansion + pushbutton + LED (without side arrow)., [D1] – SSD1306 AZDelivery 0,96 |
|---|---|
| Color | black, white |
RELATED PRODUCTS
Keystone aperture V2
incl. VAT
zzgl. Versandkosten
Cover for holding keystones.
In comparison to the Keystone wide aperture, the distance between the Keystones is narrower in this version (see technical data sheet).
This version is cheaper compared to the Keystone wide & Keystone narrow version, but does not offer the option of strain relief.
Aperture width
- 2-Keystones: 59,40mm
- 3-Keystones: 76,80mm
- 4-Keystones: 94.20mm
- 5-Keystones: 111,60mm
- 6-Keystones: 129.00mm
- 7-Keystones: 146,40mm
- 8-Keystones: 163.80mm
- 9-Keystones: 181,20mm
- 10-Keystones: 196,60mm
