CloudKey Gen2+ & Raspberry Pi – Rackmount (19″ 1U)

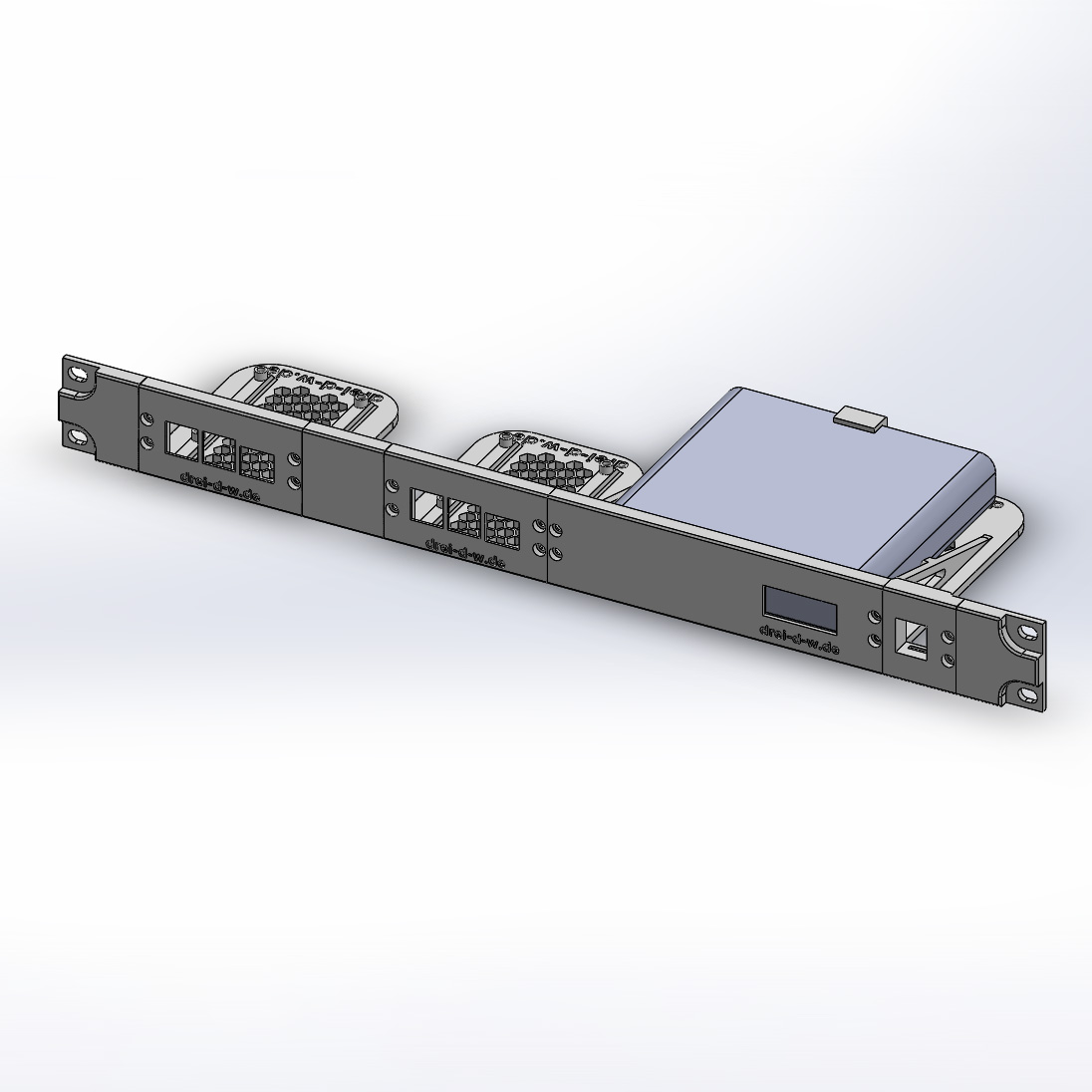

Ubiquiti Unifi CloudKey Gen2+ and RaspberryPi rackmount for 19″ racks in 1U height. Optionally 1 or 2 RaspberryPi’s can be mounted beside the CloudKey Gen2+.
Please order the appropriate quantity. Please make sure to order the correct quantity of mounting material if needed.
For a more detailed description see below

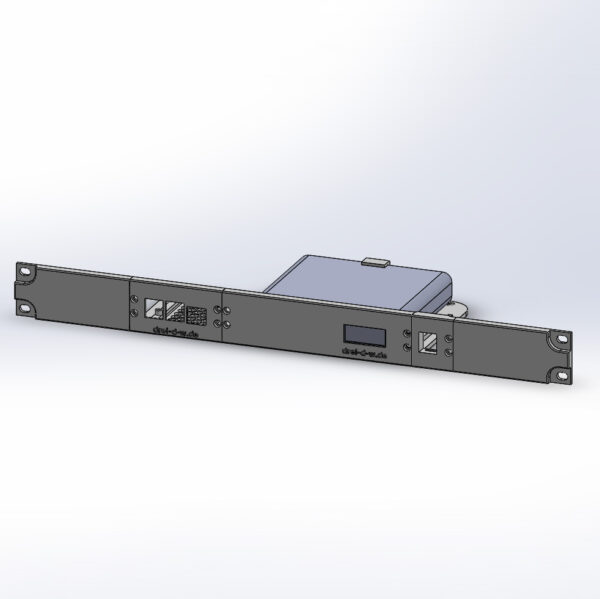

19″ Rackmount for Ubiquiti Unifi CloudKey Gen2+ and RaspberryPi
Scope of delivery:
- Base plate for mounting the CloudKey Gen2+
- (Optional) RJ45 coupler + retaining plate
- (Optional) 0.25cm network cable
- Base plate for mounting the RaspberryPi
- 2x Rackmount Adapter for mounting on the rack rail
- Mounting bracket for fixing the CloudKkey Gen2+ to the base plate
Required mounting material: (not included in the scope of delivery – can be ordered separately)
- for CloudKey Gen2+ rackmount: 4x M3x6; 1x M3x10; 5x M3 nut
- for optional RJ45 coupler + bracket : 2x M3x6
- per RaspberryPi mount: 4x M3x6; 4x M3 nut; 4x M2.5×16; 4x M2.5 nut
- 2x M6 rack rails screw
- 2x M6 rack rails nut
The delivery does not include the devices shown. The illustration of the devices is for illustration purposes only.
