Universalmount + 6P-Keystone Module – 19″ Rackmount
From: €38,68
Universalmount + 6P-Keystone Module – 19″ Rackmount (Height 1U)
With this rackmount you can keep order in your network rack.
More detailed description see below
0
People watching this product now!
Universalmount + 6P-Keystone Module – 19″ Rackmount
The universal mount works great for a Draytek Vigor 130, 160, 165 and similar.
Scope of delivery:
- Base plates for mounting the devices
- 2x Rackmount Adapter for mounting on the rack rail
Required mounting material: (partly included in delivery – optional accessories (*) can be ordered separately)
- 8x M3x6
- 8x M3 nut
- Mounting accessories for universal mount
- (*) 4x M6 rack rails Screw
- (*) 4x M6 rack rails nut
The delivery takes place without the illustrated devices. The illustration of the devices is for illustration purposes only. A warranty for Keystone modules that are not ordered from me cannot be guaranteed.
Universalmount (small)
| Color | white, black |
|---|
Keystone aperture V2
| Color | black, white |
|---|---|
| Keystone-Blende Variante | for 3 keystones (without RJ45 keystones), for 2 keystones (with RJ45 keystones), for 2 keystones (without RJ45 keystones), for 8 keystones (with RJ45 keystones), for 8 keystones (without RJ45 keystones), for 10 keystones (without RJ45 keystones), for 4 keystones (with RJ45 keystones), for 10 keystones (with RJ45 keystones), for 4 keystones (without RJ45 keystones), for 6 keystones (with RJ45 keystones), for 5 keystones (without RJ45 keystones), for 6 keystones (without RJ45 keystones), for 7 keystones (without RJ45 keystones), for 3 keystones (with RJ45 keystones), for 9 keystones (without RJ45 keystones) |
Side part
| Seitenteil | SM1U-36.60-B4-1, SM1U-36.50-B4-1, SM1U-74.20-B5-1, SM1U-72.90-B4-1, SM1U-29.40-B5-1, SM1U-36.70-B5-1, SM1U-16.60-B4-1, SM1U-150.50-B4-1, SM1U-22.00-B5-1, SM1U-40.50-B4-1, SM1U-80.50-B5-1, SM1U-15.30-B5-1, SM1U-73.50-B4-1, SM1U-50.80-B5-1, SM1U-25.20-B5-1, SM1U-78.60-B4-1, SM1U-164.50-B4-1, SM1U-53.60-B5-1, SM1U-44.50-B4-1, SM1U-34.40-B5-1, SM1U-15.60-B5-1, SM1U-90.50-B4-1, SM1U-11.60-B5-1, SM1U-25.40-B5-1, SM1U-10.00-B4-1, SM1U-27.90-B5-1, SM1U-17.50-B5-1, SM1U-50.50-B4-1, SA1U-50.00-B5-1, SM1U-37.50-B5-1, SM1U-90.90-B4-1, SM1U-55.00-B5-1, SM1U-73.50-B5-1, SM1U-17.50-B4-1, SM1U-82.50-B5-1, SM1U-92.50-B5-1, SM1U-52.50-B4-1, SA1U-100.00-B5-1, SM1U-40.50-B5-1, SM1U-96.50-B4-1, SM1U-59.00-B5-1, SM1U-52.50-B5-2, SM1U-18.60-B4-1, SM1U-50.60-B5-1, SM1U-75.50-B5-1, SM1U-53.60-B4-1, SM1U-67.50-B5-1, SM1U-68.00-B5-1, SM1U-99.50-B4-1, SM1U-77.50-B5-1, SM1U-34.20-B5-2, SM1U-22.60-B4-1, SM1U-62.50-B5-1, SM1U-11.00-B5-1, SM1U-54.50-B4-1, SM1U-32.90-B5-1, SM1U-65.00-B5-1, SM1U-117.50-B4-1, SM1U-25.50-B5-1, SM1U-14.80-B5-2, SM1U-23.90-B4-1, SM1U-67.60-B5-1, SM1U-75.90-B5-1, SM1U-57.50-B4-1, SM1U-27.60-B5-1, SM1U-41.50-B5-1, SM1U-123.90-B4-1, SM1U-14.60-B5-1, SM1U-45.80-B5-2, SM1U-25.60-B4-1, SM1U-85.60-B5-1, SM1U-41.70-B5-1, SM1U-63.90-B4-1, SM1U-35.50-B5-1, SM1U-51.70-B5-1, SM1U-132.50-B4-1, SM1U-71.60-B5-1, SM1U-64.70-B5-1, SM1U-32.50-B4-1, SM1U-35.90-B5-1, SM1U-42.50-B5-1, SM1U-68.50-B4-1, SM1U-41.10-B5-1, SM1U-24.50-B5-1, SM1U-136.50-B4-1, SM1U-30.50-B5-1, SM1U-84.70-B5-1, SM1U-33.50-B4-1, SM1U-45.90-B5-1, SM1U-65.50-B5-1, SM1U-72.50-B4-1, SM1U-20.00-B5-1, SM1U-17.10-B5-1, SM1U-145.90-B4-1, SM1U-37.30-B5-1 |
|---|
Rackscrew-Set
| Material | steel, black painted |
|---|
RELATED PRODUCTS
19″ Universalmount (small) Configurator
incl. VAT
zzgl. Versandkosten
Configure your 19" 1U rackmount with the Universal Rackmount as base.
Attention: The configuration Universalmount + 2x RaspberryPi Mount is only recommended if the Raspi's are powered via POE.

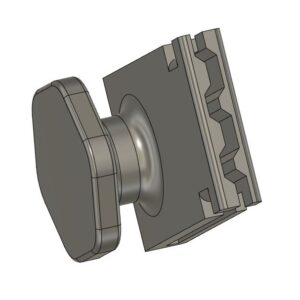

The device is fixed to the rackmount by means of a flexibly adjustable mounting system.
Scope of delivery:
- Universal rackmount with mounting system
- Incl. Mounting material
- your additionally configured components
Additional mounting material: (not included in delivery - can be ordered separately)
- 2x M6 rack rails screw
- 2x M6 rack rails nut
Suitable for devices with the following size:
- Maximum device dimensions: (width x depth x height) 140x182x40mm
- Minimum device dimensions: (width x depth x height) 100x72x1mm
The delivery takes place without the illustrated devices. The illustration of the devices is for illustration purposes only.
