Unifi USG & USG Power Supply & Raspberry Pi & PoE Injector – 19″ Rackmount

From: 42,00

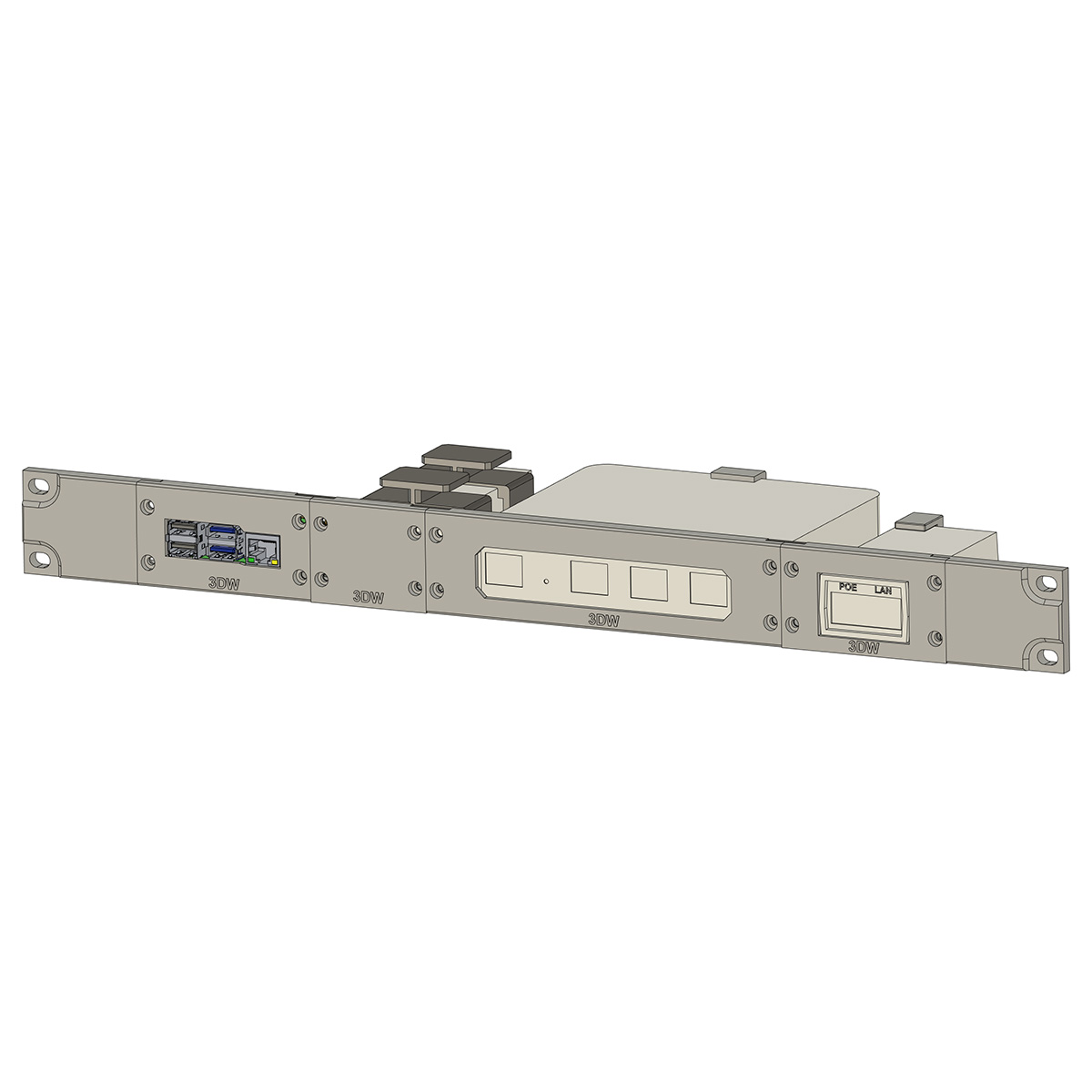

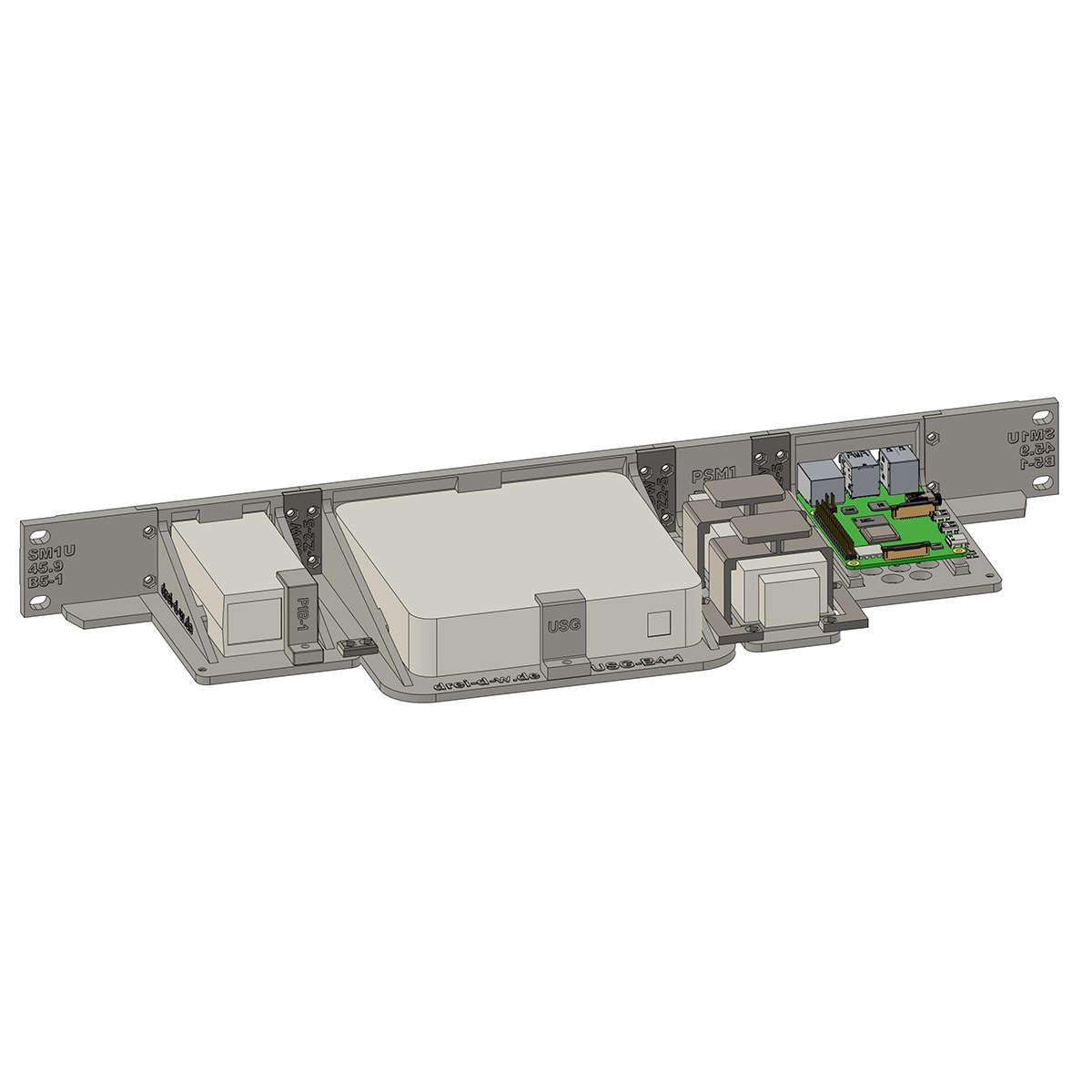

Unifi USG & USG Power Supply & Raspberry Pi & PoE Injector – 19″ Rackmount (Height 1U)

With this rackmount you can keep order in your network rack. A holder holds the devices securely on the base plate, so they do not slip.

More detailed description see below

USG Rackmount

Base plate for USG Security Gateway

Base plate width: 164.00mm

USG PowerSupply Rackmount

Base plate for USG PowerSupply

Base plate width: 53.20mm

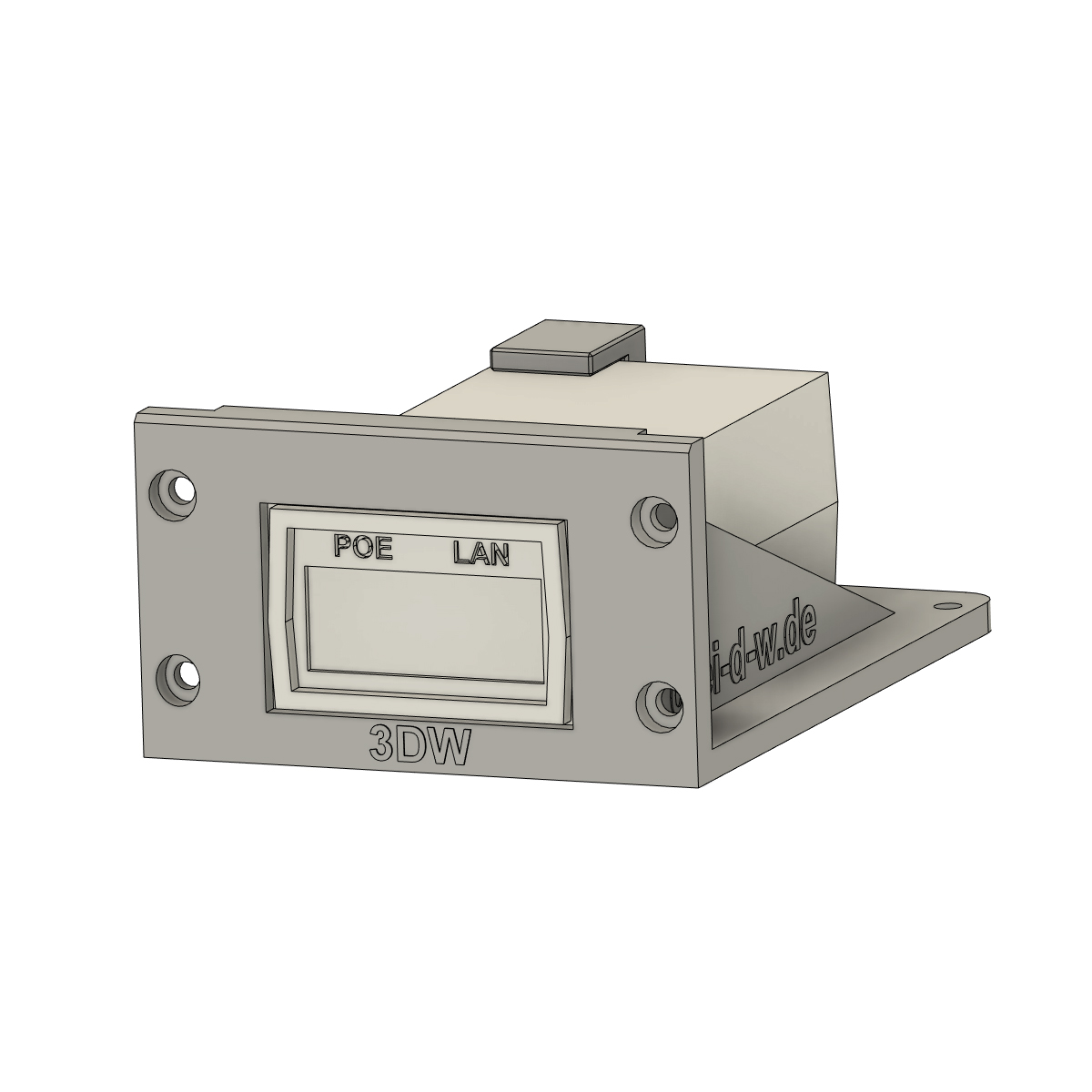

PoE Adapter (small)

Base plate for Unifi PoE Injector

Base plate width: 76.00mm

RaspberryPi Baseplate

Base plate for Raspberry Pi

Base plate width: 80.00mm

Rackscrew-Set

Side part × 2

SM1U-45.90-B5-1
1 People watching this product now!

Unifi USG & USG Power Supply & Raspberry Pi & PoE Injector – 19″ Rackmount (Height 1U)

Scope of delivery:

  • Base plates for mounting the device
  • 2x Rackmount Adapter for mounting on the rack rail
  • Mounting bracket for fixing the devices on the base plate

Required mounting material: (partly included in delivery – optional accessories (*) can be ordered separately)

  • 22x M3x6
  • 2x M3x10
  • 24x M3 nut
  • 4x M2.5×15
  • 4x M2.5 Nut
  • (*) 4x M6 rack rails Screw
  • (*) 4x M6 rack rails nut

The delivery takes place without the illustrated devices. The illustration of the devices is for illustration purposes only.

Color

black, white

USG Rackmount

Color

black, white

USG PowerSupply Rackmount

Color

black, white

PoE Adapter (small)

Color

black, white

PoE Adapter Typ

POE-24-12W-WH-EU / 24V, 12W, POE-24-12W(EU) / 24V, 12W, U-POE-af-EU / 48V, 15W

RaspberryPi Baseplate

Raspberry Pi Version

Version 3 / Version 5, Version 4

Color

black, white

Rackscrew-Set

Material

black painted, steel

Side part

Seitenteil

SM1U-45.90-B5-1
